Custom Design Membrane Switch Marine Membrane Switch Panel 3M Film Labels

Name: Custom Design Membrane Switch Marine Membrane Switch Panel 3M Film Labels
Brand: Taida
Price: 1 USD

Quality Custom Design Membrane Switch Marine Membrane Switch Panel 3M Film Labels wholesale

Brand Name : Taida

Model Number : 20241213-04

Certification : ISO9001,SGS,ROHS,REACH,UL

Place of Origin : DongGuan of China

MOQ : 300 pcs

Price : communication

Payment Terms : Western Union, T/T, PAYPAL

Supply Ability : 60000 +pcs +a Month

Delivery Time : 4-5 days for Samples making ;10-13 days for Batch goods

Packaging Details : PE bags first and Foam in Carton and etc

Material : PET or PC

Color : Pantone ,RAL， CMYK or samples

Adhesive : 3M467 adheisve or other reuqest

Size : Custom design

Storage Temperature : -40℃ to 70℃

Printing : Silk Screen Printing

Contact Now

Custom Design Membrane Switch Marine Membrane Switch Panel 3M Film Labels

Key Features

Waterproof and Durable: Designed to withstand harsh marine environments, including exposure to water, salt, and UV light.
Customizable Layout: Can be tailored to fit specific applications with unique button arrangements and graphics.
Tactile Feedback: Some panels offer tactile feedback, providing users with a physical response when buttons are pressed.
Backlighting Options: Many panels can include LED backlighting for visibility in low-light conditions.
Easy Installation: Typically designed for straightforward installation on various surfaces.

Benefits

Space-Saving Design: Membrane switches are slim and can be integrated into tight spaces.
Easy to Clean: The smooth surface is easy to wipe down and maintain.
Enhanced Aesthetics: Custom graphics can enhance the look of the control panel.

Applications

Control Systems: Used for operating lights, navigation systems, and other electronic devices on boats and ships.
Instrumentation: Common in dashboards for displaying critical information.

Specification:

Overlay material ---For front or face overlay
Polyester						Polycarbonate
1 Highly versatile for embossing 2 Highly resistant for chemicals 3 Better durability 4 For internal and external use						1 wide range of the surface finishes and thicknesses 2 More cost-effective 3 For internal and external use 4 many Lexan label choose
Embossing --- Graphic overlay or up circuit can be embossed in order to insert metal stainless steel domes for good tactile when press .Leave space for mechanical keys and provide tactile indications
Pedestal embossing	Rim embossing		Pillow embossing				Dim embossing
Windows or LCD --- For display functions
Printed colors windows such like red ,black and so on					Transparent finishes windows
Keys
Tactile Keys :witch metal domes or Poly domes ,Metal dome with different diameter and pressure kinds					Non-tactile keys: printed silver spot on the circuit
LEDs ---Miniature LEDs ,LED colors :white ,Green ,Red ,Blue ,Yellow ,Orange and others
EL and Sensors or inductors --- EL can be light any place where where you like ,and sensors can be used as LEDs
Cables --- is extension of circuit and communication with your device
Screen printing conductive silver cable		Copper plated cable /Polyimide or FPC						PCB cable
Types of connector --- 1 Zero insertion force(ZIF) with 0.5MM ,1.0MM,1.25MM pitch ;2 Female connector with 2.54MM pitch; 3 Male connector
Shielding --- For protection function
Gasket seal/Waterproof :protect the conductors against from the humidity and splashes				EMI/RFI/ESD Shielding: use an Aluminum foil shielding /clear ITO electrical conductive polyester to protect
Rear Adhesive --- Mostly use the 3M double-side mounting glue brand of USA. Also accepted others such like Lohmann and others
Back plate --- Use in Aluminum ,Polycarbonate ,Acrylic Or PMMA
Matching color --- PMS or RAL Is best ,CMYK or RGB also can be ok if you can supply PMS Or RAL
Standard Tolerances :+/-0.2MM

About Taida.pdf

More Photos Display :

Product Tags:

Marine Membrane Switch Panel

3M Film Labels Membrane Switch

Custom Design Membrane Switch

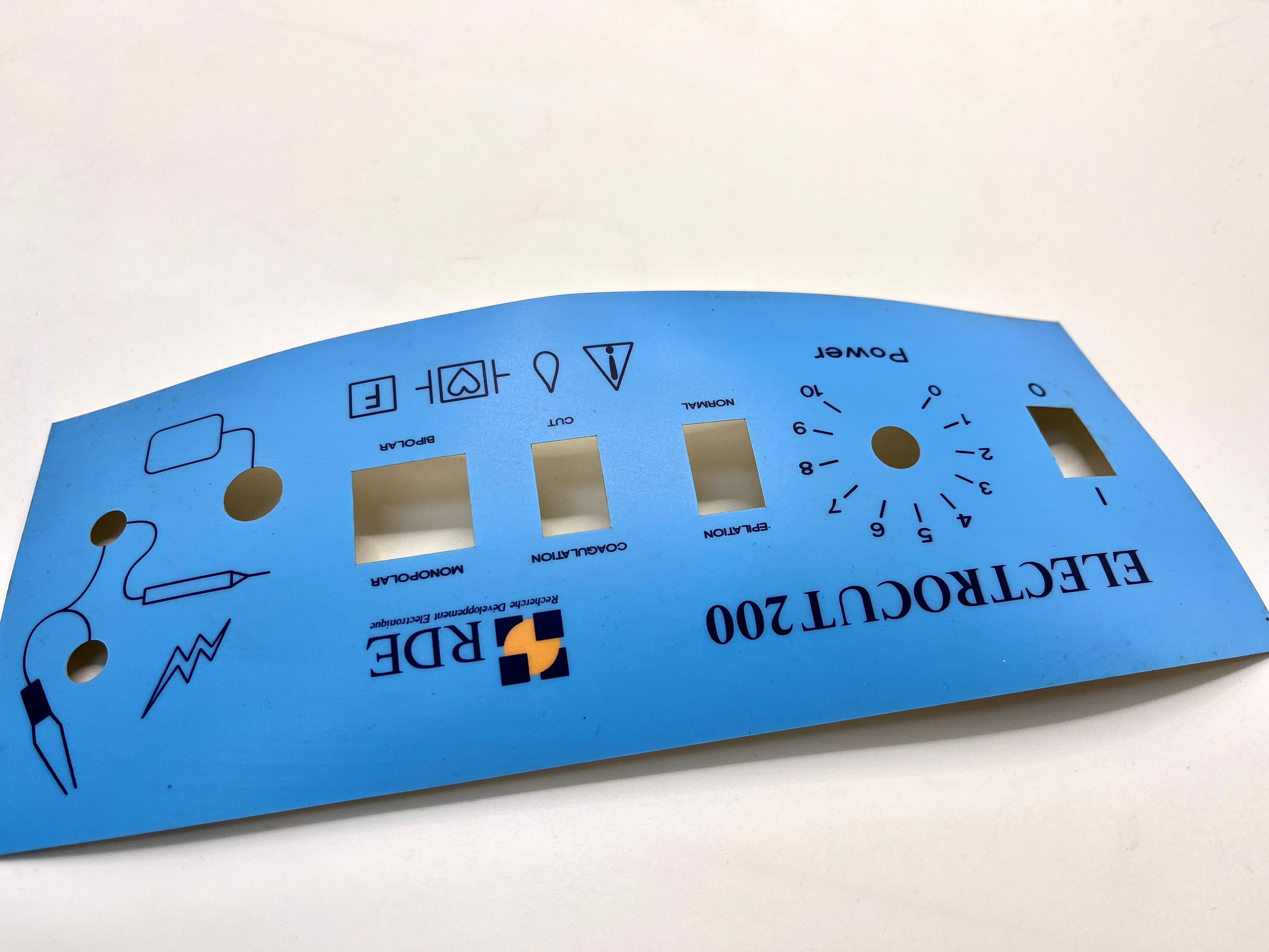

Custom Design Membrane Switch Marine Membrane Switch Panel 3M Film Labels Images
